In stock

Wiseco Piston Kit with Gasket — 91.50 mm — Honda

Wiseco · #0903-0651 · Complete Engines & Rebuild Kits / Engine

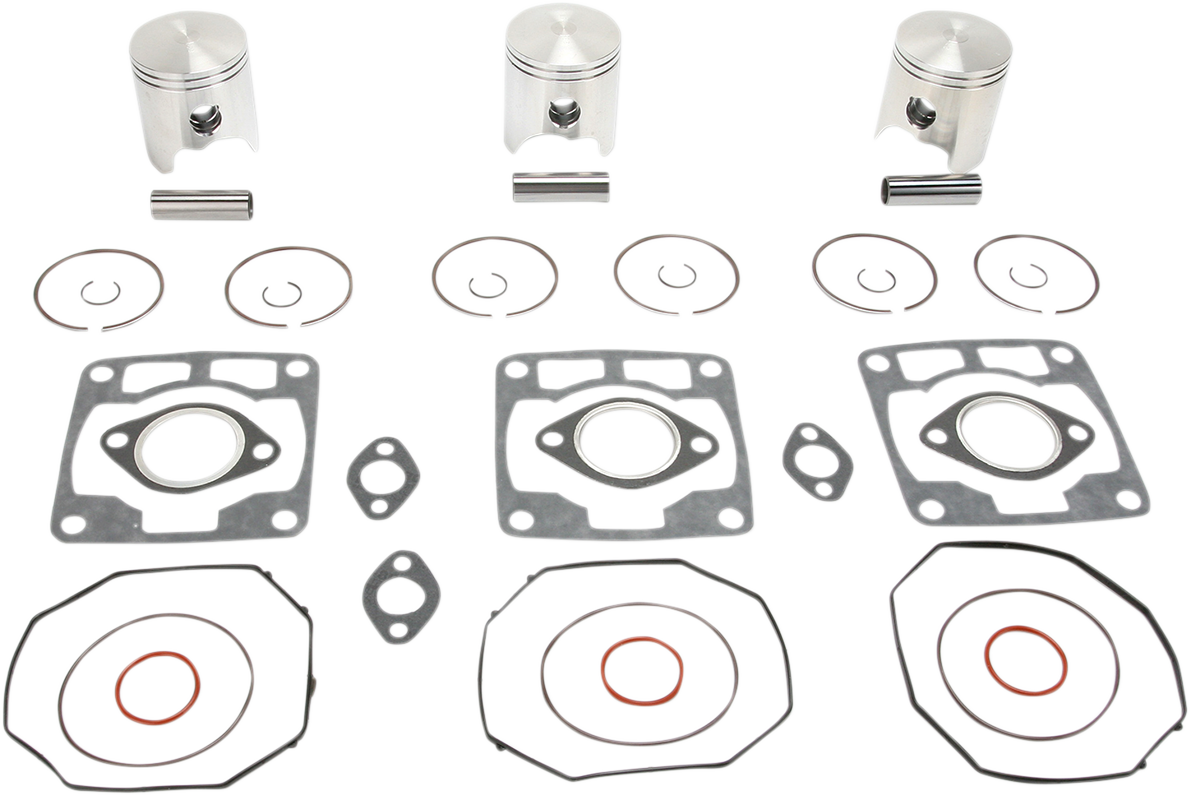

Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
Wiseco pistons can be fitted only with Wiseco rings
Cylinder sleeves must be purchased separately.

$286.82

In stock. Ships in 2–4 business days · free shipping over $150.

Questions? Call the shop: 801-361-3010

Real shop · real humans · 1231 N 1300 W Ste A, Centerville, UT 84014

Shop all Wiseco
Everything we carry from Wiseco →

Description & features4 features

Piston is +1.50 mm oversize.

Kit Includes:

• Piston Kit #4825M09150

• Ring Set #9150XX

• Wrist Pin #S660

• Wrist Pin Retainer Set #CW19

• Gasket Kit #W6371

Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
Wiseco pistons can be fitted only with Wiseco rings
Cylinder sleeves must be purchased separately.

Specifications15 specs

Piston Diameter: 91.42 mm
Riding Style: ATV
Displacement: 432 cc
Bore Size: 91.50 mm
Piston Material: 2618 Aluminum Alloy
Compression Ratio: 9.5:1
Skirt Coating: Non-Coated
Units: Kit
Engine Type: 4-Stroke
Model: Forged Series
Stroke Length: 68.00 mm
Type: Top End
Shipping weight: 1.75 lb
Package size: 8.6 × 8 × 5.2 in
Country of origin: USA

Fitment2 models · Honda

Honda2 models

TRX450FE FourTrax Foreman ES1998–2004
TRX450FM FourTrax Foreman S1998–2000, 2002–2004

Fitment comes from the catalog data for this part. Double-check your year, model and trim before you order — or call the counter at 801-361-3010 and we’ll check it with you.

Part numbers

Salto part #: 0903-0651
Wiseco part #: PK1592

Shipping

In stock. Ships in 2–4 business days by ground.

Ground shipping is $14.95, free on orders over $150. Stock is checked again before your card is charged.

Questions4 answers

Is it in stock?: Yes — it’s in stock right now. We check again the moment you order, before anything is charged.
How fast will it get to me?: Usually 2–4 business days by ground.
Will it fit my machine?: It’s listed for the models in the Fitment section above. Not sure about your trim or year? Call the counter at 801-361-3010 and we’ll check it with you.
Is this genuine Wiseco?: Yes. It’s new and genuine, straight from Salto — Wiseco part #PK1592.
