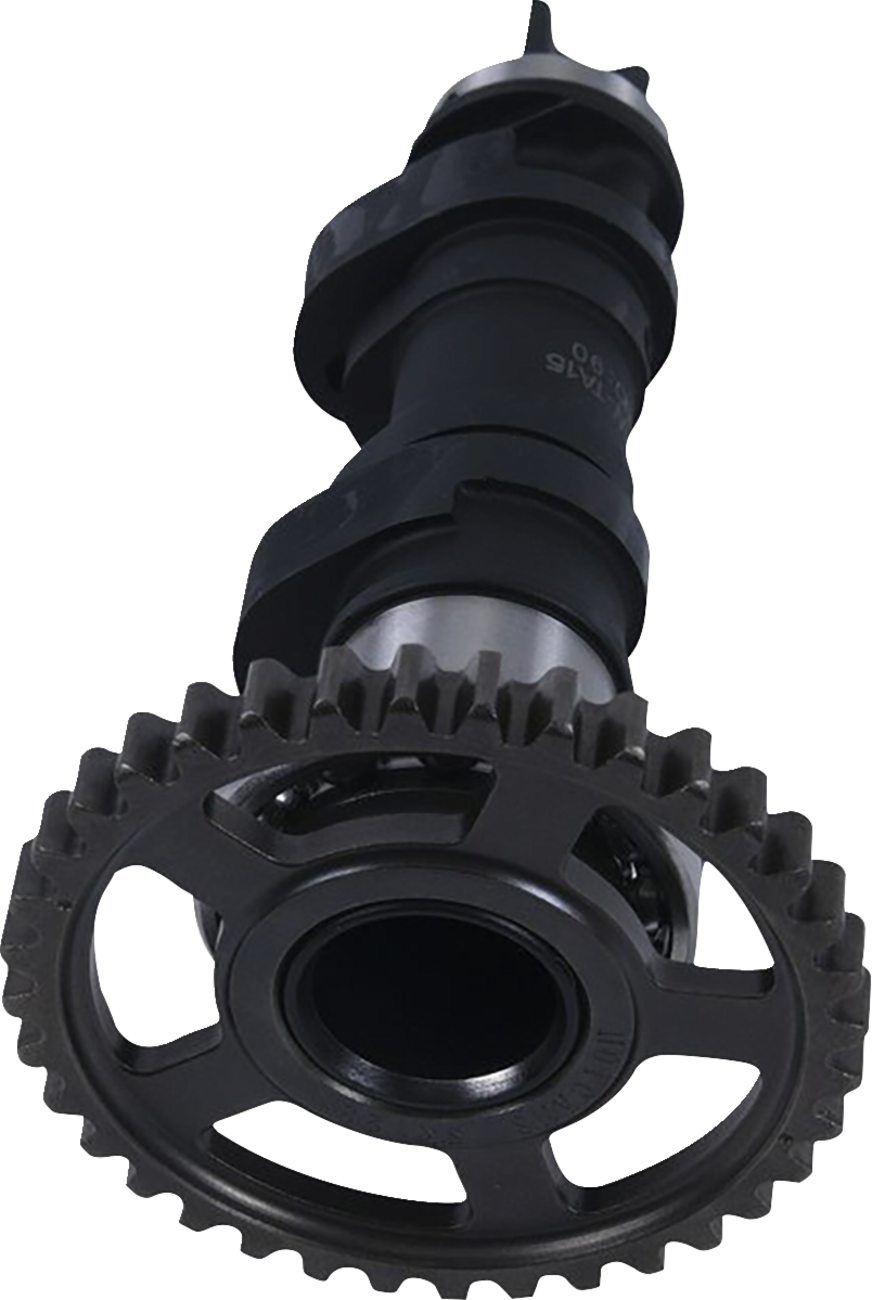

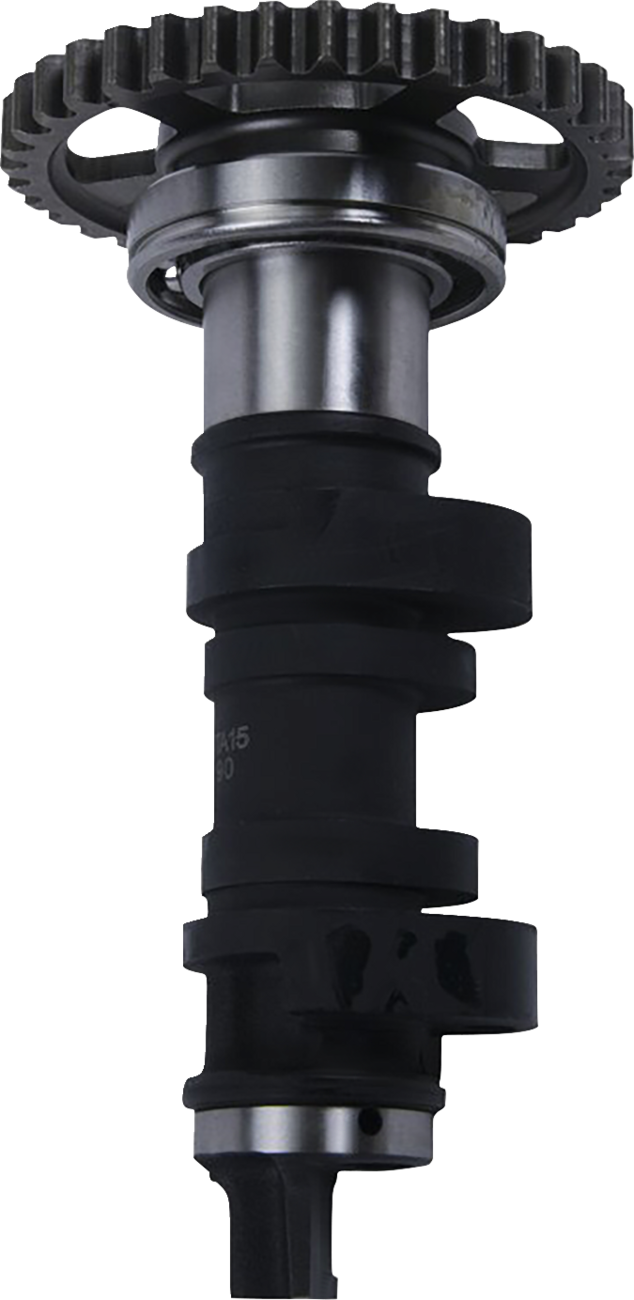

Hot Cams Camshaft — Single Cam — Stage 2 — Honda

Slight bottom end and mid range increases up to 7400 rpm with gains 7400 rpm to redline.

Designed with I.T.R. technology.

Uses stock valve springs and cam followers.

Uses stock decompression mechansim.

For single cam engine.

Intake Valve Lash: 0.130 mm.

Exhaust Valve Lash: 0.280 mm.

• Computer Numerical Control (CNC) from 8620 billet steel and case harden
• Designed and dyno proven in the USA
• Engineered by using valvetrain software
• Adds a 5%-10% power gain
• Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end
• Designed for mid to top end gains.
• Engineered to be drop in cams that use stock valve springs (unless otherwise noted).

Exhaust Lobe Centerline

102.150°

Application

Exhaust, Intake

Units

Each

Intake Lift

10.950 mm

Intake Lobe Centerline

107.360°

Riding Style

Off-Road

Exhaust Lift

9.910 mm

Intake Duration

253.850°

Exhaust Duration

257°

Type

Stage 2

Shipping weight

1.07 lb

Package size

9.8 × 3.2 × 3 in

Country of origin

Taiwan

Salto part #

0925-1594

Hot Cams part #

HC00054

In stock. Ships in 2–4 business days by ground.

Ground shipping is $14.95, free on orders over $150. Stock is checked again before your card is charged.

California: this part can’t ship to a California address.

Is it in stock?

Yes — it’s in stock right now. We check again the moment you order, before anything is charged.

How fast will it get to me?

Usually 2–4 business days by ground.

Will it fit my machine?

It’s listed for the models in the Fitment section above. Not sure about your trim or year? Call the counter at 801-361-3010 and we’ll check it with you.

Is this genuine Hot Cams?

Yes. It’s new and genuine, straight from Salto — Hot Cams part #HC00054.
