In warehouse stock

Kibblewhite Cylinder Head Kit — C630 Valve Guides — Black Diamond™ Valves — Can Am

Kibblewhite · #0926-3115 · Top End / Engine

Kit includes complete top end gasket kit, full set of KPMI® standard valves, high performance titanium spring kit, complete set of valve guides, and Viton® valve stem seals
Top end gasket kit includes base gaskets, engine case gaskets, exhaust gaskets, head gaskets and necessary o-rings and washers

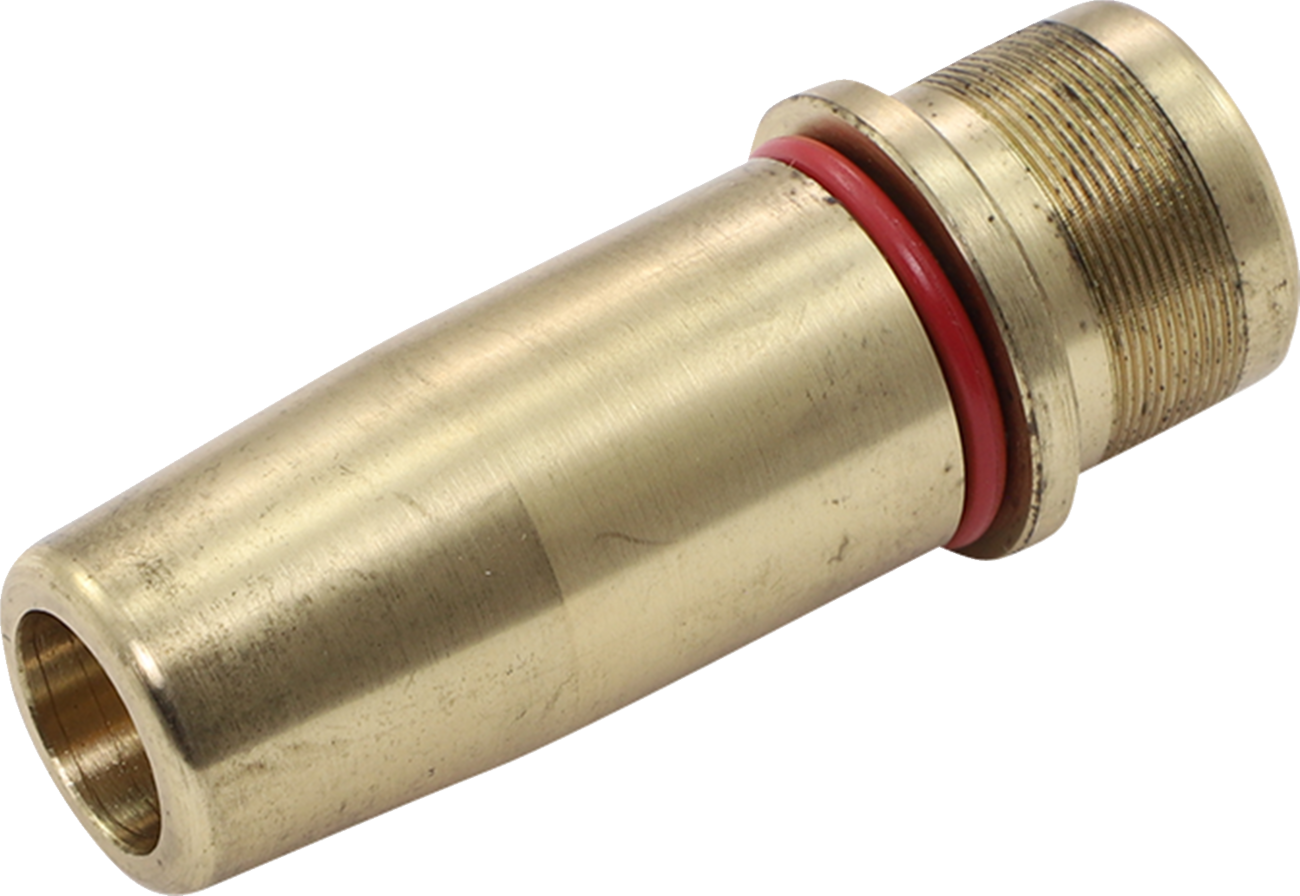

C630 valve guides are a blend of copper, nickel, and aluminum
C674 valve guides are a softer Manganese that are easily reamed
Black Diamond™ valves are a one pieced forged stainless steel valve that are impregranted by a special German process to improve wear properties and reduce friction

$1021.95

In stock. Ships in 2–4 business days · free shipping over $150.

Questions? Call the shop: 801-361-3010

Real shop · real humans · 1231 N 1300 W Ste A, Centerville, UT 84014

Description & features6 features

Includes:

• 4x Intake Titanium Retainers

• 4x CrSi Valve Springs

• 4x H.T. Steel Basewashers

• 4x Exhaust Titanium Retainers

• 4x Exhaust CrSi Valve Springs

• 4x Exhaust H.T Steel Basewashers

• 4x Intake Standard Black Diamond™ Valves

• 4x Exhaust Standard Black Diamond™ Valves

• 4x Intake Standard C630 Valve Guides

• 4x Exhaust Standard C630 Valve Guides

• 1x Top End Gasket Kit

Kit includes complete top end gasket kit, full set of KPMI® standard valves, high performance titanium spring kit, complete set of valve guides, and Viton® valve stem seals
Top end gasket kit includes base gaskets, engine case gaskets, exhaust gaskets, head gaskets and necessary o-rings and washers
C630 valve guides are a blend of copper, nickel, and aluminum
C674 valve guides are a softer Manganese that are easily reamed
Black Diamond™ valves are a one pieced forged stainless steel valve that are impregranted by a special German process to improve wear properties and reduce friction
White Diamond® valves are fully CNC machined from one-piece forging of either EV8 Stainless Steel or Inconel-751 material, and are hard chromed with a 360° anode to produce the highest possible grade of a hard chrome finish

Specifications13 specs

Model: Black Diamond™
Spring Open Pressure: 177 lb
Spring Lift: 0.470"
Material: C630 Bronze
Spring Seat Pressure: 57 lb
Valve Seat Height: 1.370"
Units: Kit
Application: Intake, Exhaust
Collar Material: Titanium
Riding Style: UTV
Shipping weight: 2.2 lb
Package size: 7.8 × 7.6 × 2.5 in
Country of origin: USA

Fitment46 models · Can-Am

Can-Am46 models

Maverick 1000 X DS 4x42015
Maverick 1000 X RS 4x42013–2014
Maverick 1000R2013–2016
Maverick 1000R DPS2016–2018
Maverick 1000R Turbo2017
Maverick 1000R Turbo X ds2016
Maverick 1000R Turbo X rs2016
Maverick 1000R X ds2016
Maverick 1000R X mr DPS2015
Maverick 1000R X rs DPS2015
Maverick 1000R X xc2017
Maverick 1000R X XC 4x42016
Maverick 1000R X xc DPS2015
Maverick 1000R XC2016
Maverick 1000R xc DPS2017–2018
Maverick Max 1000 4x42016–2018
Maverick Max 1000R2014–2015
Maverick Max 1000R DPS2016–2018
Maverick Max 1000R Turbo2017
Maverick Max 1000R Turbo X ds2015–2017
Maverick Max 1000R Turbo X rs2016–2017
Maverick Max 1000R X ds2015–2016
Maverick Max 1000R X mr2017–2018
Maverick Max 1000R X rs DPS2015
Maverick Max Turbo 1000R 4x42016
Maverick Max X rs DPS 1000R2014
Maverick Trail 1000R2018
Maverick Trail 1000R DPS2018
Maverick Trail 800R2018
Maverick Trail 800R DPS2018
Maverick Turbo 1000R 4x42016
Maverick X mr 1000R2014
Maverick X rs DPS 1000R2014
Maverick X xc DPS 1000R2014
Maverick X3 900 HO2018
Maverick X3 Max Turbo2018
Maverick X3 Max Turbo R2017–2018
Maverick X3 Max X ds Turbo R2017–2018
Maverick X3 Max X rs Turbo R2017–2018
Maverick X3 Turbo2018
Maverick X3 Turbo R2017–2018
Maverick X3 X ds Turbo R2017–2018
Maverick X3 X mr Turbo2018
Maverick X3 X rc Turbo2018
Maverick X3 X rc Turbo R2018
Maverick X3 X rs Turbo R2017–2018

Fitment comes from the distributor’s catalog. Double-check your year, model and trim before you order — or call the counter at 801-361-3010 and we’ll check it with you.

Part numbers

Salto part #: 0926-3115
Kibblewhite part #: 90-91400

Shipping

In stock at a distributor warehouse. Ships in 2–4 business days by ground.

Ground shipping is $14.95, free on orders over $150. Stock is re-checked with the warehouse before your card is charged.

Questions4 answers

Is it in stock?: Yes — the distributor shows it on a shelf at a regional warehouse right now. We check again the moment you order, before anything is charged.
How fast will it get to me?: Usually 2–4 business days by ground.
Will it fit my machine?: The distributor lists it for the models in the Fitment section above. Not sure about your trim or year? Call the counter at 801-361-3010 and we’ll check it with you.
Is this genuine Kibblewhite?: Yes. It ships new from the same distributors the big online stores buy from — Kibblewhite part #90-91400.
