Kibblewhite Cylinder Head Kit — C630 Valve Guides — White Diamond® Valves — Honda

Includes:

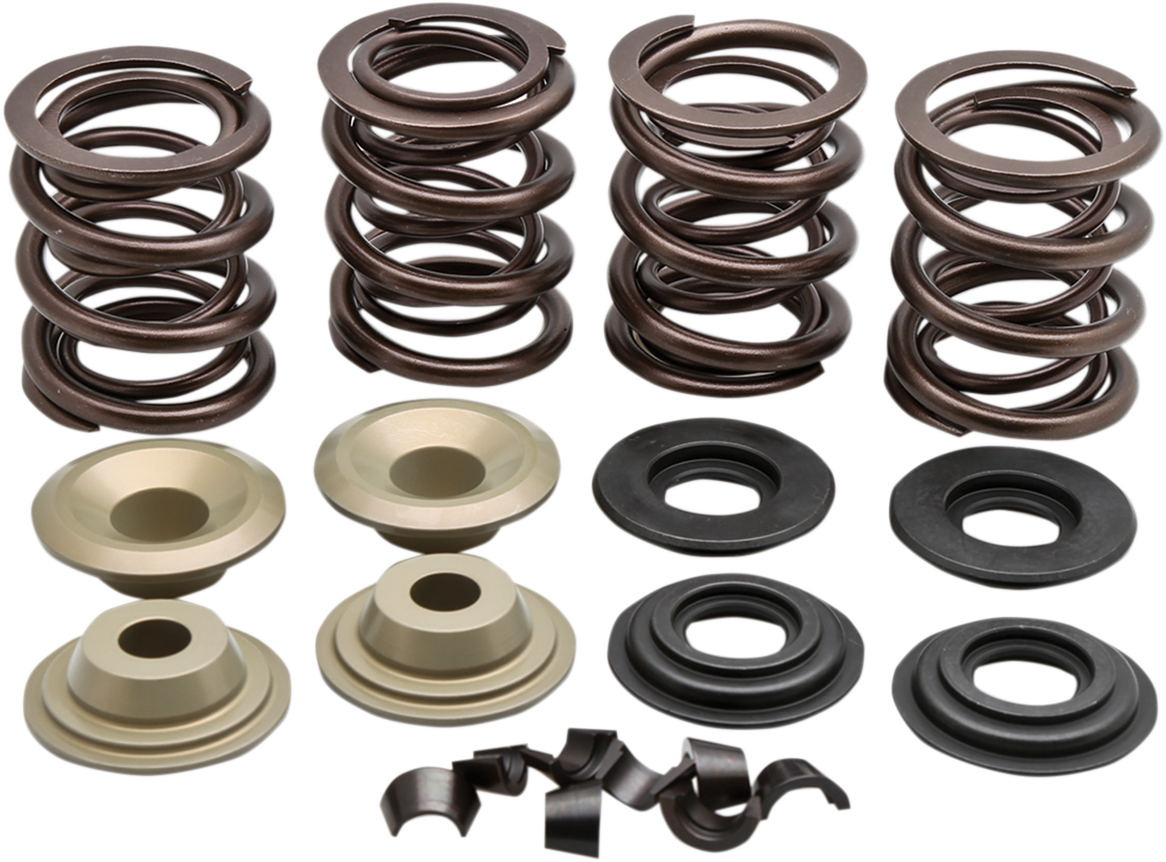

• 2x Intake Titanium Retainers

• 2x Intake CrSi Valve Springs

• 2x Intake H.T. Steel Basewashers

• 2x Exhaust Titanium Retainers

• 2x Exhaust CrSi Valve Springs

• 2x Exhaust H.T. Steel Basewashers

• 2x Intake Standard White Diamond® Valves

• 2x Exhaust Standard White Diamond® Valves (Inconel®)

• 2x Intake Standard C630 Valve Guides

• 2x Exhaust Standard C630 Valve Guides

• 2x Intake Viton Seals

• 2x Exhaust Viton Seals

• 1x Top End Gasket Kit

• Kit includes complete top end gasket kit, full set of KPMI® standard valves, high performance titanium spring kit, complete set of valve guides, and Viton® valve stem seals
• Top end gasket kit includes base gaskets, engine case gaskets, exhaust gaskets, head gaskets and necessary o-rings and washers
• C630 valve guides are a blend of copper, nickel, and aluminum
• C674 valve guides are a softer Manganese that are easily reamed
• Black Diamond™ valves are a one pieced forged stainless steel valve that are impregranted by a special German process to improve wear properties and reduce friction

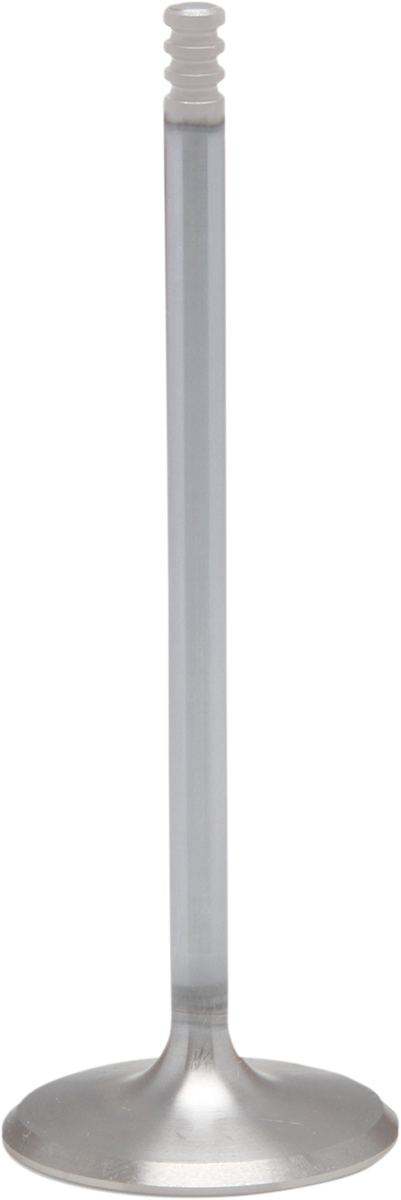

• White Diamond® valves are fully CNC machined from one-piece forging of either EV8 Stainless Steel or Inconel-751 material, and are hard chromed with a 360° anode to produce the highest possible grade of a hard chrome finish

Model

White Diamond®

Units

Kit

Application

Exhaust, Intake

Collar Material

Titanium

Material

C630 Bronze

Spring Lift

Intake 0,440" , Exhaust 0,405", Intake 0.440", Exhaust 0.405"

Riding Style

Off-Road

Valve Seat Height

Intake 1.340", Exhaust 1.360"

Spring Open Pressure

Intake 162 lb, Exhaust 220 lb

Spring Seat Pressure

Intake 50 lb, Exhaust 90 lb

Shipping weight

1.25 lb

Package size

7.9 × 7.5 × 2.5 in

Country of origin

USA

Salto part #

0926-3119

Kibblewhite part #

30-33330
