Athena Cylinder Kit — Big Bore — Horizontal Engine — Scooter — Malaguiti | Yamaha 50 · 50

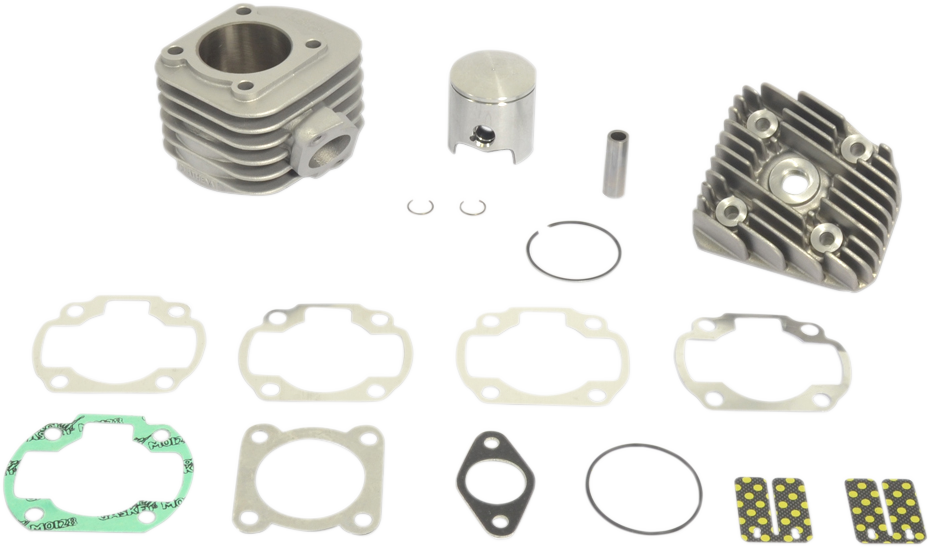

- Kit includes complete aluminum cylinder, with a nickel carbide plated bore, cylinder head, piston, rings, 10 mm wrist pin, circlips, carbon reeds and all required top-end gaskets
- Domed piston head
- Bolt on
- It is recommended that Athena's 17.50 mm or 19.00 mm scooter carburetor be used with the bolt on big bore kit.
- Whenever the cylinder kit is disassembled, replace the gaskets with the specific Athena spare gasket kit, do not use OE replacement gaskets.
$243.95
In stock. Ships in 2–4 business days · free shipping over $150.
View cart & check out →
Questions? Call the shop: 801-361-3010
Real shop · real humans · 1231 N 1300 W Ste A, Centerville, UT 84014
Description & features6 features
- Kit includes complete aluminum cylinder, with a nickel carbide plated bore, cylinder head, piston, rings, 10 mm wrist pin, circlips, carbon reeds and all required top-end gaskets
- Domed piston head
- Bolt on
- It is recommended that Athena's 17.50 mm or 19.00 mm scooter carburetor be used with the bolt on big bore kit.
- Whenever the cylinder kit is disassembled, replace the gaskets with the specific Athena spare gasket kit, do not use OE replacement gaskets.
- Can be installed without making any changes to the engine crankcase.
Specifications12 specs
- Displacement
- 70 cc
- Style
- Big Bore
- Bore Size
- 47.60 mm
- Cylinder Bore Coating
- Nickel-Carbide
- Engine Type
- 2-Stroke
- Units
- Kit
- Material
- Aluminum
- Riding Style
- Street
- Color/Finish
- Silver
- Shipping weight
- 2.7 lb
- Package size
- 7.9 × 5.9 × 4.3 in
- Country of origin
- Italy
Fitment11 models · Aprilia, Benelli, Beta, Malaguti, Yamaha
Aprilia3 models
- Rally 50 (Air Cooled)1995–2003
- Scarabeo 50 2T1993–2005
- Sonic 50 AC1998–2007
Benelli3 models
- 491 ST Rage1999–2000
- K2 501998–2001
- Pepe 50 LX1999–2000
Beta2 models
- Ark 501996–2008
- Quadra 501995–1999
Malaguti2 models
- F10 Jetline 501992–2000
- F15 Firefox 502005
Yamaha1 models
- YW50 Zuma2002–2005
Fitment comes from the distributor’s catalog. Double-check your year, model and trim before you order — or call the counter at 801-361-3010 and we’ll check it with you.
Part numbers
- Salto part #
- 0931-0077
- Athena part #
- 070200
- UPC
- 8050444897096
Shipping
In stock at a distributor warehouse. Ships in 2–4 business days by ground.
Ground shipping is $14.95, free on orders over $150. Stock is re-checked with the warehouse before your card is charged.
Questions4 answers
- Is it in stock?
- Yes — the distributor shows it on a shelf at a regional warehouse right now. We check again the moment you order, before anything is charged.
- How fast will it get to me?
- Usually 2–4 business days by ground.
- Will it fit my machine?
- The distributor lists it for the models in the Fitment section above. Not sure about your trim or year? Call the counter at 801-361-3010 and we’ll check it with you.
- Is this genuine Athena?
- Yes. It ships new from the same distributors the big online stores buy from — Athena part #070200.
