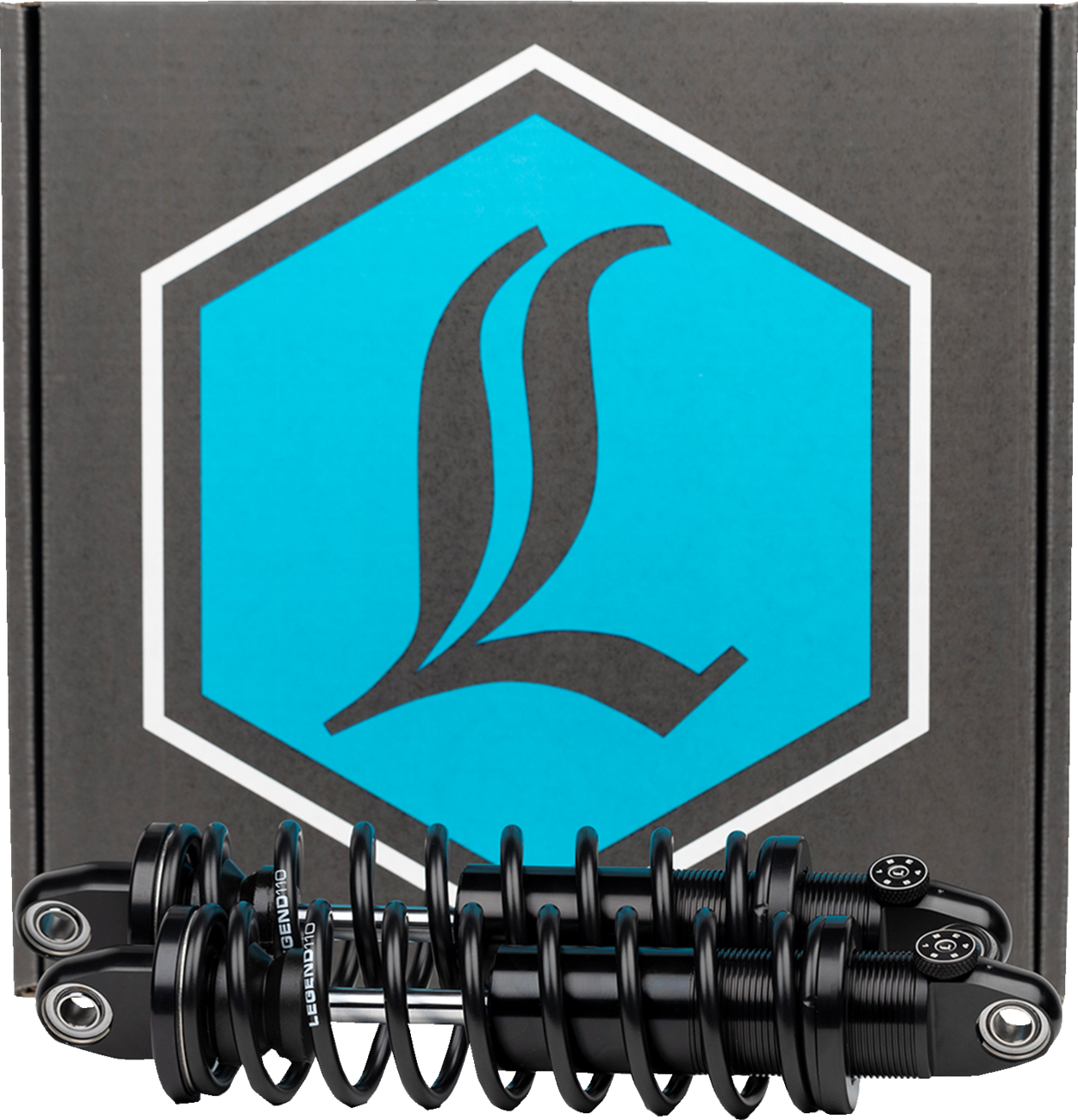

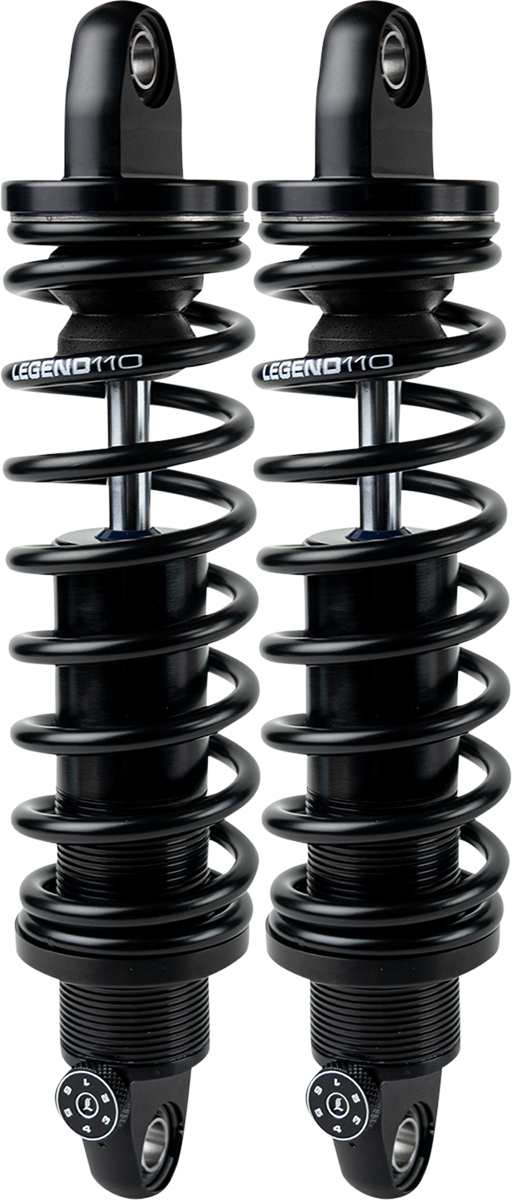

Legend Suspension REVO-A Adjustable XL Coil Suspension — 14" — Black — Heavy-Duty

In warehouse stock

Legend Suspension REVO-A Adjustable XL Coil Suspension — 14" — Black — Heavy-Duty

Legend Suspension · #1310-1123 · Rear Suspension / Suspension & Frame

Available in Black, Gold, and Clear Type III hard coat anodize
Legend's touring specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
Adjusts by hand, no tools needed
Available in 12", 13", and 14", standard or heavy-duty applications
Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points

$999.95

In stock. Ships in 2–4 business days · free shipping over $150.

Questions? Call the shop: 801-361-3010

Real shop · real humans · 1231 N 1300 W Ste A, Centerville, UT 84014

Description & features10 features

Heavy Duty application is recommended for 500 lb+ rider and passenger total weight. Does not fit Sportster Super Low. Does not fit Sportster Super Low or RH 975/1250 Sportster models. 14" Shocks require short exhaust.

Available in Black, Gold, and Clear Type III hard coat anodize
Legend's touring specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
Adjusts by hand, no tools needed
Available in 12", 13", and 14", standard or heavy-duty applications
Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
All the benefits of the REVO shocks above plus six external knob adjustments allow fine-tuning of rebound
Provides optimum rebound performance for any given rider weight, personal ride quality preference, or personal riding style
Light to heavy riders can fine-tune ride preference
Aggressive to casual riding styles can tune to desired quality or personal preference
Made by hand in Sturgis, SD USA

Specifications15 specs

Color/Finish: Black, Anodized
Duty: Heavy Duty
Riding Style: Street
Material: Aluminum
Mounting Position: Rear
Reservoir Location: Internal
Units: Pair
Adjustment Type: Adjustable Rebound Damping
Extended Length: 14.00"
Model: Revo-A
Damping Method: Deflective Disc
Type: Coilover Twin-Tube
Shipping weight: 8.95 lb
Package size: 16.2 × 15.3 × 5.9 in
Country of origin: USA

Fitment30 models · Harley-Davidson

Harley-Davidson30 models

1200 Custom EFI XLC2002–2006
1200 Low EFI XLL2006
1200 Roadster EFI XLR2006
1200 XLCP2011–2017
883 Custom EFI XLC2004–2006
883 EFI XL2009
883 Low EFI XLL2006
883 Roadster EFI XLR2005–2006
883 Roadster XLR2007
Sportster 1200 X XR2009
Sportster 1200 XR2011–2012
XL1200C Sportster 1200 Custom2004–2019
XL1200CX Roadster2016–2020
XL1200L Sportster 1200 Low2006–2011
XL1200N Sportster 1200 Nightster2007–2012
XL1200NS Iron 12002018–2021
XL1200R Sportster 1200 Roadster2004–2009
XL1200T SuperLow 1200T2014–2017
XL1200V Seventy-Two2012–2016
XL1200X Forty-Eight2010–2022
XL1200XS Forty-Eight Special2018–2019
XL50 50th Anniversary Sportster2007
XL883 Sportster2004–2008
XL883C Sportster 883 Custom2004–2009
XL883L Sportster 883 Low2005–2010
XL883L SuperLow2011–2019
XL883N Iron 8832009–2022
XL883R Sportster 883 Roadster2005–2007
XR12002010
XR1200X2010–2012

Fitment comes from the distributor’s catalog. Double-check your year, model and trim before you order — or call the counter at 801-361-3010 and we’ll check it with you.

Part numbers

Salto part #: 1310-1123
Legend Suspension part #: 1310-1123

Shipping

In stock at a distributor warehouse. Ships in 2–4 business days by ground.

Ground shipping is $14.95, free on orders over $150. Stock is re-checked with the warehouse before your card is charged.

Questions4 answers

Is it in stock?: Yes — the distributor shows it on a shelf at a regional warehouse right now. We check again the moment you order, before anything is charged.
How fast will it get to me?: Usually 2–4 business days by ground.
Will it fit my machine?: The distributor lists it for the models in the Fitment section above. Not sure about your trim or year? Call the counter at 801-361-3010 and we’ll check it with you.
Is this genuine Legend Suspension?: Yes. It ships new from the same distributors the big online stores buy from — Legend Suspension part #1310-1123.
