Kfi Products Winch Mount — Polaris/Bobcat

• Constructed of 3/16" grade 50 steel
• Metal bead blasted and powder-coated for best possible finish prep and durability
• Very easy to install
• Complete installation instructions included

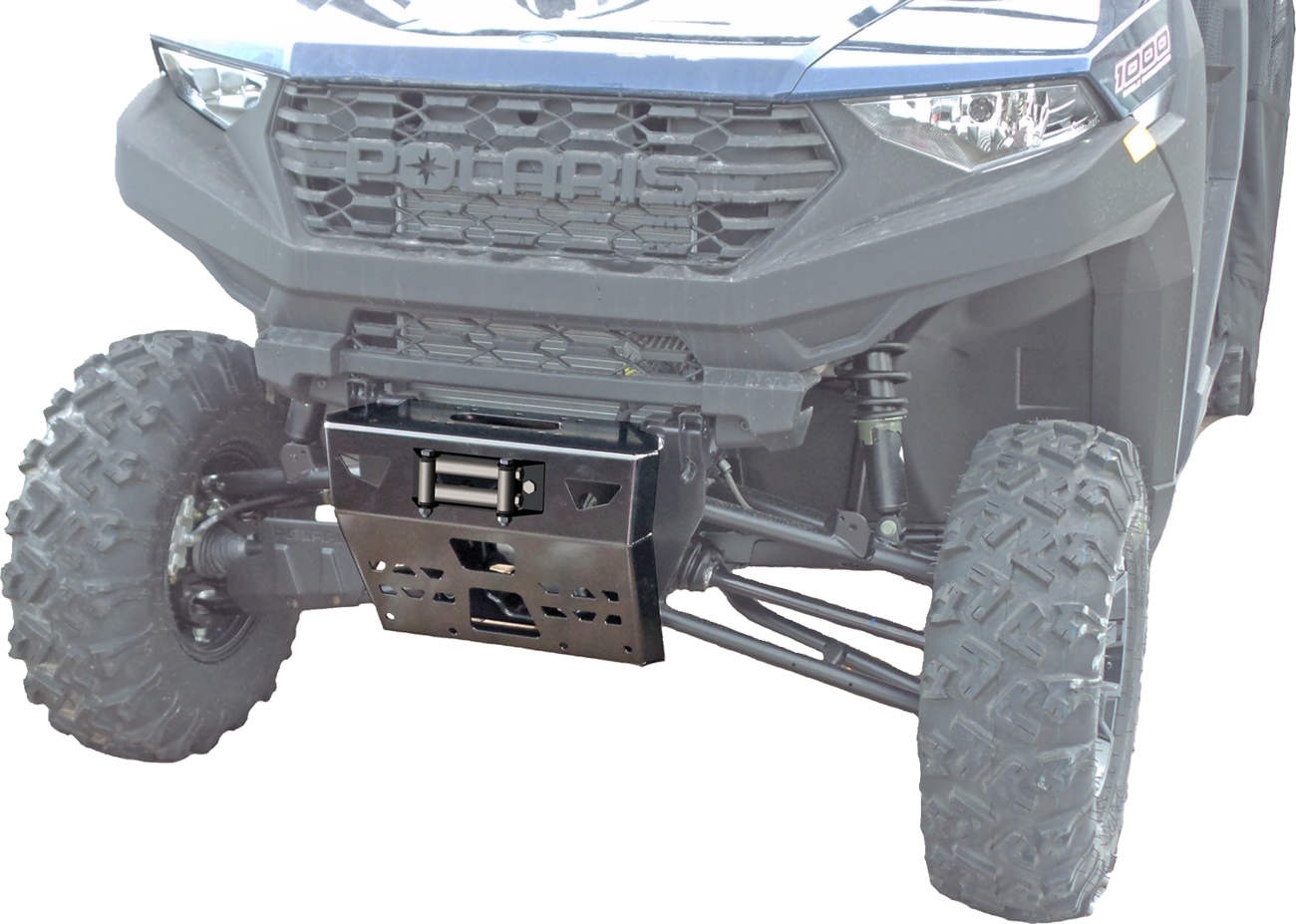

• Mounts winch tucked back behind front bumper
• 100% made in the USA
• Designed to work with the following winches:
• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
• KFI: AM-25 / AM-35 / AS-25 / AS-35 / AS-50x / AS-50wx
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / WARN: RT40 / XT40
• WARN: Vantage 2000-4000 lb
• WARN: ProVantage 2500-4500 lb
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
• MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500
• BADLAND: 2-hole, standard, and wide winches
• CHAMPION: 2-hole, ATV 4-hole, UTV-4 hole, and wide winches
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER: KT2000 (requires roller fairlead with a 4.875" bolt pattern)
• SMITTYBILT: XRC 2.0 (requires roller fairlead with a 4.875" bolt pattern)
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000 4-hole standard (3.00" x 4.875" bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series) with 3.00" x 4.875" or 3.00" x 6.600" bolt pattern mount-up
• Traveller: 1078311
• Traveller: 1078088 / 1087302 (require roller fairlead with a 4.875" bolt pattern)
• QUADBOSS: RP25 / RP35
• Possibly many others with 4-hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern) or 4-hole wide (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern) or 2-hole (3.10" with rollers that are 4.875" bolt pattern)
• It is recommended to also purchase the Polaris wire 3-pin harness part #2120-1247.
• Roller fairlead and winch not included.

Color/Finish

Powder-Coated, Black

Compatibility

1.5ci, KT4000c, LT2500, Powermax 3500, Terra 2500 SR, U2500, Vantage 2000, Venom 3500, VRX-45, 1078302, 1078311, AM-25, ATV2500, KT3000, RT/XT30, RT/XT40, Terra 3500 SR, UT3000, Venom 4000, 2.5ce, KT2000, LT2000, LT4000SR, Provantage 2500, Provantage 3500, Provantage 4500, Terra 4500 SR, U45-R2, Venom 2500, Work Power 1500, XRC 2.0, 3.0ce, A3000, AS-25, SE45-R2, Terra25, Terra35, Vantage 4000, Work Power 2500, X4000, 2.5ci, 3.0ci, A2500, AS-35, LT4000ATV, LT4000UTV, Vantage 3000, 1078088, AS-50wx, AS-50x, KT4000, LT3000, RT/XT15, SE35, Terra45, Venom 2000, VRX-25S, VRX-35, X3000, XRC 3.0, A3500, ATV3000, KFI ST17, KT2500, KT3000C, RP 35, RT/XT25, SE25, Venom 3000, Venom 4500, VRX-35S, VRX-45S, 3.0s, A2000, A2500-R2, AM-35, KT2500C, Powermax 2500, RP 25, SE45w-R2, U45w-R2, Venom 5000, VRX-25, XRC 4.0

Riding Style

UTV

Units

Each

Type

Winch

Material

Steel

Shipping weight

19.8 lb

Package size

18 × 16.5 × 8.5 in

Country of origin

USA

Salto part #

4505-1157

Kfi Products part #

101830

UPC

748252688293
