In warehouse stock

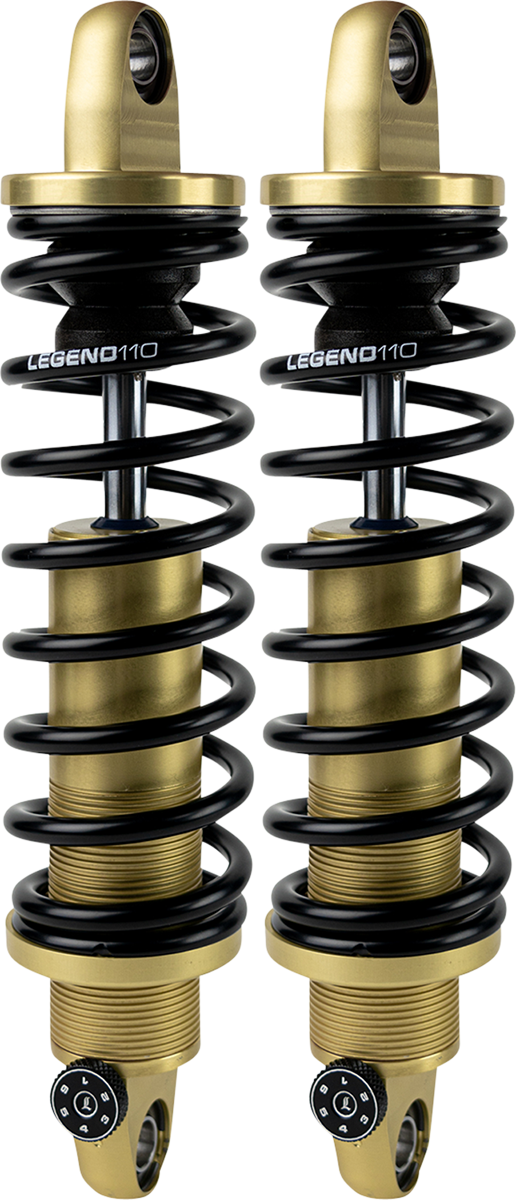

Legend Suspension REVO-A Adjustable FXR Coil Suspension — 14" — Gold — Standard

Legend Suspension · #1310-1746 · Rear Suspension / Suspension & Frame

Available in Black, Gold and Clear Type III hard coat anodize
Legend's touring specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
Adjusts by hand, no tools needed
Available in 12", 13", and 14", standard or heavy-duty applications
Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points

$999.95

In stock. Ships in 2–4 business days · free shipping over $150.

Questions? Call the shop: 801-361-3010

Real shop · real humans · 1231 N 1300 W Ste A, Centerville, UT 84014

Description & features11 features

FXR Models: Heavy Duty application is recommended for 500 lb+ rider and passenger total weight. Also consider Heavy Duty if the majority of your riding is 2-UP, stunt riding, or aggressive riding style. Heavy Duty not available in clear or gold anodized. 14" REVO-A requires short exhaust.

Available in Black, Gold and Clear Type III hard coat anodize
Legend's touring specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
Adjusts by hand, no tools needed
Available in 12", 13", and 14", standard or heavy-duty applications
Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
All the benefits of the new REVO shocks above plus six external knob adjustments allow fine-tuning of rebound
Provides optimum rebound performance for any given rider weight, personal ride quality preference, or personal riding style
Light to heavy riders can fine-tune ride preference
Aggressive to casual riding styles can tune to desired quality or personal preference
Lifetime Warranty
Made by hand in Sturgis, SD USA

Specifications14 specs

Reservoir Location: Internal
Units: Pair
Model: Revo-A
Mounting Position: Rear
Adjustment Type: Adjustable Rebound Damping
Color/Finish: Gold, Anodized
Riding Style: Street
Type: Coilover Twin-Tube
Material: Aluminum
Duty: Standard
Extended Length: 14.00"
Shipping weight: 9.45 lb
Package size: 16.2 × 15.3 × 6 in
Country of origin: USA

Fitment13 models · Harley-Davidson

Harley-Davidson13 models

FXR Super Glide II1986–1994
FXR21999
FXR31999
FXR42000
FXRC Low Rider Chrome1985, 1987
FXRD Sport Glide Grand Touring1986
FXRDG Disc Glide1984
FXRS Low Glide1984–1988, 1991–1992
FXRS-Conv Low Rider Sport Convertible1990–1993
FXRS-SP Low Rider Sport1986–1993
FXRT Sport Glide1985–1992
Low Rider FXRS1989–1990, 1993
Sport Glide FXRT1993

Fitment comes from the distributor’s catalog. Double-check your year, model and trim before you order — or call the counter at 801-361-3010 and we’ll check it with you.

Part numbers

Salto part #: 1310-1746
Legend Suspension part #: 1310-1746

Shipping

In stock at a distributor warehouse. Ships in 2–4 business days by ground.

Ground shipping is $14.95, free on orders over $150. Stock is re-checked with the warehouse before your card is charged.

Questions4 answers

Is it in stock?: Yes — the distributor shows it on a shelf at a regional warehouse right now. We check again the moment you order, before anything is charged.
How fast will it get to me?: Usually 2–4 business days by ground.
Will it fit my machine?: The distributor lists it for the models in the Fitment section above. Not sure about your trim or year? Call the counter at 801-361-3010 and we’ll check it with you.
Is this genuine Legend Suspension?: Yes. It ships new from the same distributors the big online stores buy from — Legend Suspension part #1310-1746.
