Koso HD-03X | TFT Gauge Set — Harley-Davidson®

Optional air pressure sensor kit sold separately (part # 2212-0901).

• Plug and play
• Color customization with daytime and nighttime modes
• Features a smartphone integration that gives full control of dashboard directly from the device
• Connects gauges to phone with the KOSO K Link app and monitor real-time data of the bike: speed, fuel level, oil temperature, gear indicator, RPM, best performance, horsepower, tire pressure and more
• Can see vehicle’s location on the app and never have to search for it again in crowded places

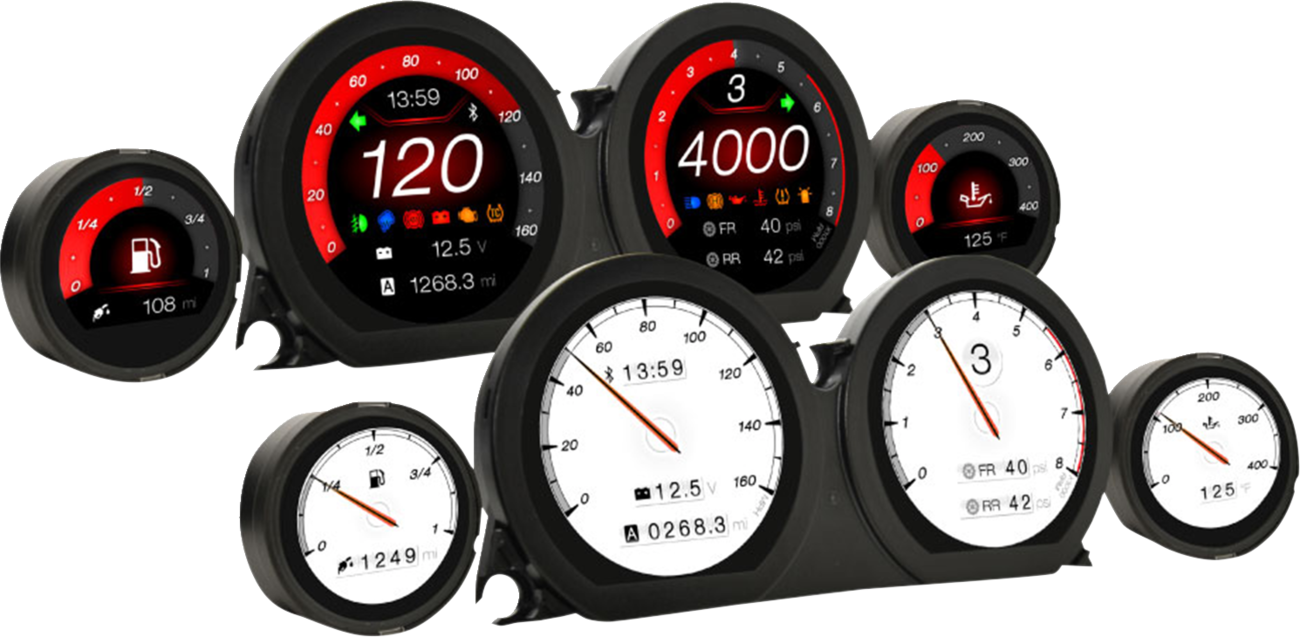

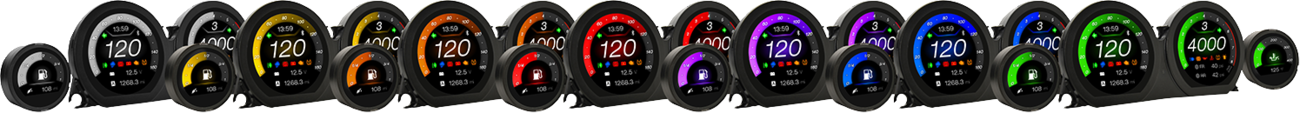

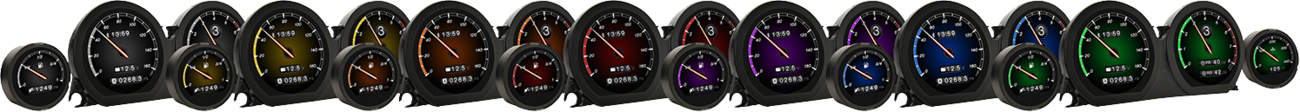

• Match your motorcycle’s style by instantly changing between the analog and digital interface, as well as seven different backlight colors, providing up to 14 unique display combinations
• K Link app also allows to check system health and maintenance with its diagnostics feature
• Optional air pressure sensor for models equipped with air suspension is available separately
• Specifications:
• Tachometer (0 - 8,000), RPM Shift Light (1,000 - 8,000 RPM), Maximum RPM (0 - 8,000 RPM)
• Speedometer (0 - 199 MPH), Maximum Speed Record (0 - 199 MPH), Overspeed Warning (20 - 199 MPH)
• Odometer (0 - 999,999 miles), Tripmeter A/B (0 - 9,999 miles), Mileage Maintenance (300 - 10,000 miles)
• Engine Temperature (40°F - 572°F), Oil Temperature Meter (32°F - 248°F), Maximum Oil Temperature Record (40°F - 572°F) Effective Temperature Range (-4°F - 140°F)
• Volt Meter (DC 8V - 18V), Effective Voltage (DC 12V)
• To access settings on CVO models, must turn on the run/stop switch so that the bike will not turn off. Then make adjustments to the settings on the gauge.

Depth

1-3/4", 2"

Riding Style

Street

Length

10-5/8", 2-3/4"

Model

HD-03X

Housing Color

Black

Units

Kit

Width

2-3/4", 3-3/4"

Type

Multi-Function

Style

Electronic

Shipping weight

1.6 lb

Package size

13.5 × 6.8 × 4 in

Country of origin

Taiwan

Salto part #

2210-0702

Koso part #

BA064930

Special order. We email the ship date when you order.

Ground shipping is $14.95, free on orders over $150. Stock is checked again before your card is charged.

Is it in stock?

It isn’t in stock right now, but we can special-order it. We confirm timing by email when you order, before anything is charged.

How fast will it get to me?

We confirm the ship date when you order. If anything changes, you hear it from us first.

Will it fit my machine?

It’s listed for the models in the Fitment section above. Not sure about your trim or year? Call the counter at 801-361-3010 and we’ll check it with you.

Is this genuine Koso?

Yes. It’s new and genuine, straight from Salto — Koso part #BA064930.
