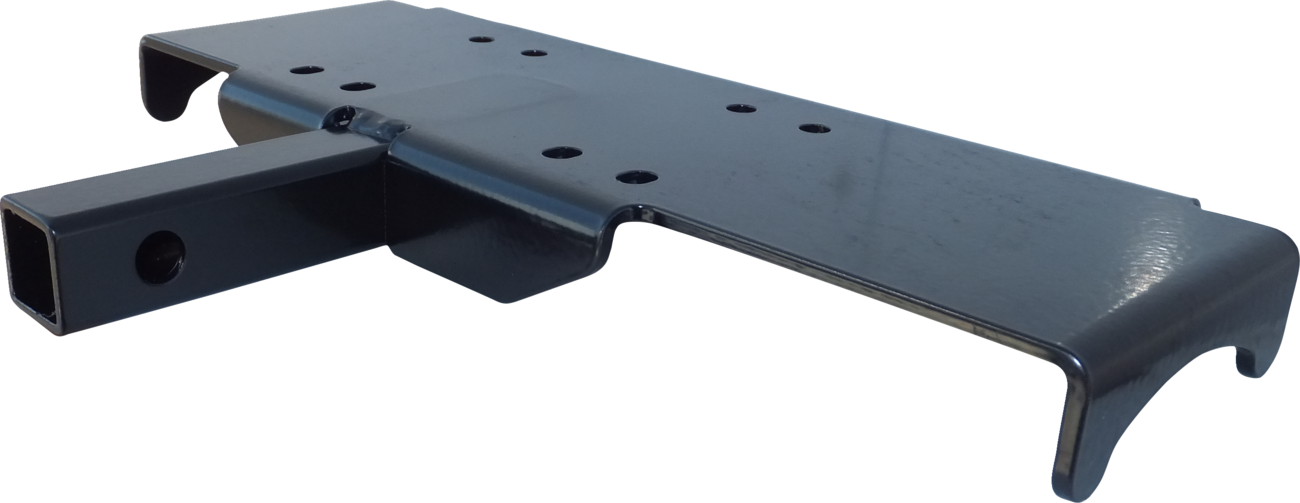

KFI Products Winch Mount — 1-1/4" Receiver

If your winch kit did not come with a fairlead bracket you will need either part #4505-1070 for 4-Hole winches 3.00" x 4.875" Standard, part #4505-1073 for most 4-Hole winches 3.00" x 6.600" Wide, or part #4505-1086 for Warn/VRX/AXON winches 3.00" x 4.875" Standard.

• Constructed of 3/16" steel
• Shot blasted before they are powder-coated for the best possible finish prep
• Fits Tiger Tail™ Retractable Tow Rope, part# 4505-1057
• Easy to install
• Made in USA
• Mount requires a roller fairlead bracket that comes with most winches.
• Compatible winches:
• KFI: ST17 / S2000 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
• KFI: AM-25 / AM-35 / AS-25 / AS-35
• KFI: AS-50 / AS-50w
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
• WARN: AXON 35 / AXON 35-S / AXON 45RC
• WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: Vantage 2000-3000 lb / Provantage 2500-3500 lb
• WARN: RT40 / XT40
• WARN: Vantage 4000 lb / Provantage 4500 lb
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
• MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK: 1500 lb #2955AT (Requires roller fairlead with a 4.875" bolt pattern; available if needed part #4505-0953)
• CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND: Apex 5500 Wide
• BADLAND: 2-Hole Winches, Standard Winches, WIDE Winches
• Champion: 2-Hole Winches, Standard Winches, WIDE Winches, 14001, and 14061
• SMITTYBILT: XRC 2.0 (Requires roller fairlead with a 4.875" bolt pattern; available if needed part #4505-0953)
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000 (4-Hole Standard 3.00" x 4.875" bolt pattern)
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series with 3.00" x 4.875" or 3.00 x 6.600" bolt pattern mount-up)
• Traveller: 1078311
• Traveller: 1078088, 1078302 (requires fairlead with 4.875" bolt pattern, available if needed part #4505-0953)
• May fit 4-hole 3.00 x 4.875" bolt pattern with rollers that are 4.875" bolt pattern, 4-hole WIDE 3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern, or 2-hole 3.10" with rollers that are 4.875" bolt pattern

Compatibility

1078302, 2.5ce, 3.0ce, Axon 45, Axon 45RC, LT3000, PE2500, Provantage 3500, Terra 4500 SR, Terra25, Venom 2500, Venom 4500, VRX-35, 3.0ci, A2500, AM-25, KT3000, LT4000ATV, LT4000SR, LT4000UTV, RT/XT30, SE45-R2, Terra 3500 SR, Work Power 1500, 1078088, AS-50, Axon 35-s, PE3000, PE3500, SE35, U45-R2, Venom 2000, X3000, XRC 3.0, A2000, AM-35, Axon 55, PE2000, Venom 5000, VRX-25, Work Power 2500, AS-50w, KFI S2000, Powermax 2500, SE45w-R2, Venom 4000, 1.5ci, A3000, AS-25, KT2500, KT4000, KT4000c, Terra 2500 SR, Terra35, 1078311, A2500-R2, ATV2500, Axon 45-s, Axon 55-s, KT2500C, KT3000C, PE2.5, PE3.5, RT/XT15, RT/XT40, U45w-R2, UT3000, XRC 4.0, Terra45, U2500, Vantage 2000, Venom 3500, VMX2.5, VRX-25S, VRX-35S, VRX-45, VRX-45S, X4000, 2.5ci, A3500, AS-35, ATV3000, Axon 35, KFI ST17, LT2000, LT2500, Powermax 3500, Provantage 2500, RT/XT25, SE25, Vantage 3000, Venom 3000, XRC 2.0

Material

Steel

Receiver Size

1-1/4", 31.75 mm, 31,75 mm (1-1/4")

Units

Each

Riding Style

UTV

Color/Finish

Black, Powder-Coated

Type

Winch

Shipping weight

7.15 lb

Package size

16.3 × 10.3 × 4.5 in

Country of origin

USA

Salto part #

4505-1117

KFI Products part #

100615

UPC

705105363059
